Generic force-driven object. More...

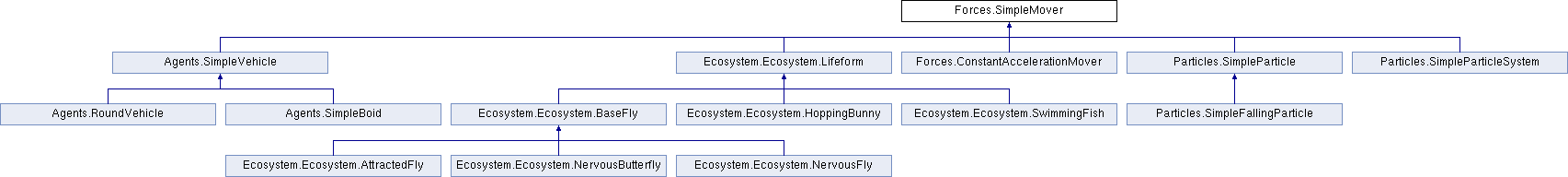

Inheritance diagram for Forces.SimpleMover:

Public Types
enum class	WrapModeEnum { Wrap , Bounce , None }
	Wrapping mode enum. More...

Public Member Functions
	SimpleMover ()
	Create a simple wrapping mover with a circle mesh. More...

	SimpleMover (WrapModeEnum wrapMode)
	Create a simple mover with a custom wrap mode and a circle mesh. More...

virtual void	ApplyForce (Vector2 force)
	Apply force on mover. More...

virtual void	ApplyAngularForce (float force)
	Apply angular force on mover. More...

virtual void	ApplyFriction (float coef)
	Apply friction on mover. More...

virtual void	ApplyAngularFriction (float coef)
	Apply angular friction on mover. More...

virtual void	ApplyDrag (float coef)
	Apply drag on mover. More...

virtual void	ApplyDamping (float coef)
	Apply damping on mover. More...

Public Attributes
Vector2	Velocity = Vector2.Zero
	Current velocity More...

Vector2	Acceleration = Vector2.Zero
	Current acceleration More...

float	AngularVelocity
	Current angular velocity More...

float	AngularAcceleration
	Current angular acceleration More...

float	MaxVelocity = 10
	Max velocity More...

float	MaxAngularVelocity = 0.1f
	Max angular velocity More...

float	Mass = 1
	Mass More...

WrapModeEnum	WrapMode
	Wrapping mode More...

bool	DisableForces
	Disable forces More...

bool	SyncRotationOnVelocity
	Synchronize rotation on velocity More...

SimpleMesh	Mesh
	Mesh More...

Protected Member Functions
virtual void	UpdateAcceleration ()
	Update acceleration value. More...

Protected Attributes
CollisionShape2D	collisionShape2D
	Collision shape More...

Properties
bool	Drawing `[get, set]`
	Draw mesh More...

Vector2	MeshSize `[get, set]`
	Mesh size More...

float	Radius `[get, set]`
	Mesh radius More...

Detailed Description

Generic force-driven object.

Definition at line 9 of file SimpleMover.cs.

Member Enumeration Documentation

◆ WrapModeEnum

enum Forces.SimpleMover.WrapModeEnum

strong

Wrapping mode enum.

Enumerator
Wrap	Wrap on edges
Bounce	Bounce on edges
None	No edge limit

Definition at line 14 of file SimpleMover.cs.

         {
             Wrap,

             Bounce,

             None
         }

Constructor & Destructor Documentation

◆ SimpleMover() [1/2]

Forces.SimpleMover.SimpleMover ( )

inline

Create a simple wrapping mover with a circle mesh.

Definition at line 95 of file SimpleMover.cs.

95 : this(WrapModeEnum.Wrap) { }

Forces.SimpleMover.WrapModeEnum

WrapModeEnum

Wrapping mode enum.

Definition: SimpleMover.cs:15

◆ SimpleMover() [2/2]

Forces.SimpleMover.SimpleMover ( WrapModeEnum wrapMode )

inline

Create a simple mover with a custom wrap mode and a circle mesh.

Parameters

wrapMode Wrap mode

Definition at line 101 of file SimpleMover.cs.

         {
             WrapMode = wrapMode;
             Mesh = new SimpleMesh();
             Name = "SimpleMover";

             collisionShape2D = new CollisionShape2D() { Name = "CollisionShape2D" };
         }

Member Function Documentation

◆ ApplyAngularForce()

virtual void Forces.SimpleMover.ApplyAngularForce ( float force )

inlinevirtual

Apply angular force on mover.

Parameters

force Force angle in radians

Definition at line 123 of file SimpleMover.cs.

         {
             AngularAcceleration += force / Mass;
         }

◆ ApplyAngularFriction()

virtual void Forces.SimpleMover.ApplyAngularFriction ( float coef )

inlinevirtual

Apply angular friction on mover.

Parameters

coef	Friction coefficient

Definition at line 142 of file SimpleMover.cs.

         {
             AngularAcceleration += -AngularVelocity * coef / 10f;
         }

◆ ApplyDamping()

virtual void Forces.SimpleMover.ApplyDamping ( float coef )

inlinevirtual

Apply damping on mover.

Parameters

coef	Damping coefficient

Definition at line 164 of file SimpleMover.cs.

         {
             Velocity *= coef;
         }

◆ ApplyDrag()

virtual void Forces.SimpleMover.ApplyDrag ( float coef )

inlinevirtual

Apply drag on mover.

Parameters

coef	Drag coefficient

Definition at line 151 of file SimpleMover.cs.

         {
             float speedSqr = Velocity.LengthSquared();
             float mag = coef * speedSqr;

             var drag = Velocity.Normalized() * mag * -1;
             ApplyForce(drag);
         }

◆ ApplyForce()

virtual void Forces.SimpleMover.ApplyForce ( Vector2 force )

inlinevirtual

Apply force on mover.

Parameters

force Force vector

Definition at line 114 of file SimpleMover.cs.

         {
             Acceleration += force / Mass;
         }

◆ ApplyFriction()

virtual void Forces.SimpleMover.ApplyFriction ( float coef )

inlinevirtual

Apply friction on mover.

Parameters

coef	Friction coefficient

Definition at line 132 of file SimpleMover.cs.

         {
             var friction = (-Velocity).Normalized() * coef;
             ApplyForce(friction);
         }

◆ UpdateAcceleration()

virtual void Forces.SimpleMover.UpdateAcceleration ( )

inlineprotectedvirtual

Update acceleration value.

Reimplemented in Particles.SimpleFallingParticle, Forces.ConstantAccelerationMover, Agents.SimpleVehicle, Ecosystem.Ecosystem.HoppingBunny, Ecosystem.Ecosystem.SwimmingFish, Ecosystem.Ecosystem.NervousButterfly, Ecosystem.Ecosystem.NervousFly, and Ecosystem.Ecosystem.AttractedFly.

Definition at line 172 of file SimpleMover.cs.

172 { }

Member Data Documentation

◆ Acceleration

Vector2 Forces.SimpleMover.Acceleration = Vector2.Zero

Current acceleration

Definition at line 30 of file SimpleMover.cs.

◆ AngularAcceleration

float Forces.SimpleMover.AngularAcceleration

Current angular acceleration

Definition at line 36 of file SimpleMover.cs.

◆ AngularVelocity

float Forces.SimpleMover.AngularVelocity

Current angular velocity

Definition at line 33 of file SimpleMover.cs.

◆ collisionShape2D

CollisionShape2D Forces.SimpleMover.collisionShape2D

protected

Collision shape

Definition at line 90 of file SimpleMover.cs.

◆ DisableForces

bool Forces.SimpleMover.DisableForces

Disable forces

Definition at line 51 of file SimpleMover.cs.

◆ Mass

float Forces.SimpleMover.Mass = 1

Mass

Definition at line 45 of file SimpleMover.cs.

◆ MaxAngularVelocity

float Forces.SimpleMover.MaxAngularVelocity = 0.1f

Max angular velocity

Definition at line 42 of file SimpleMover.cs.

◆ MaxVelocity

float Forces.SimpleMover.MaxVelocity = 10

Max velocity

Definition at line 39 of file SimpleMover.cs.

◆ Mesh

SimpleMesh Forces.SimpleMover.Mesh

Mesh

Definition at line 57 of file SimpleMover.cs.

◆ SyncRotationOnVelocity

bool Forces.SimpleMover.SyncRotationOnVelocity

Synchronize rotation on velocity

Definition at line 54 of file SimpleMover.cs.

◆ Velocity

Vector2 Forces.SimpleMover.Velocity = Vector2.Zero

Current velocity

Definition at line 27 of file SimpleMover.cs.

◆ WrapMode

WrapModeEnum Forces.SimpleMover.WrapMode

Wrapping mode

Definition at line 48 of file SimpleMover.cs.

Property Documentation

◆ Drawing

bool Forces.SimpleMover.Drawing

getset

Draw mesh

Definition at line 60 of file SimpleMover.cs.

         {
             get => Mesh.Visible;
             set
             {
                 Mesh.Visible = value;
             }
         }

◆ MeshSize

Vector2 Forces.SimpleMover.MeshSize

getset

Mesh size

Definition at line 70 of file SimpleMover.cs.

         {
             get => Mesh.MeshSize;
             set
             {
                 Mesh.MeshSize = value;
             }
         }

◆ Radius

float Forces.SimpleMover.Radius

getset

Mesh radius

Definition at line 80 of file SimpleMover.cs.

         {
             get => Mesh.MeshSize.x / 2;
             set
             {
                 Mesh.MeshSize = new Vector2(value * 2, value * 2);
             }
         }

The documentation for this class was generated from the following file:

scripts/forces/SimpleMover.cs
